Aluminum

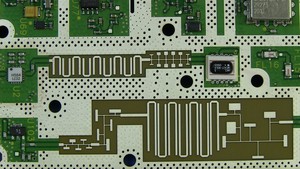

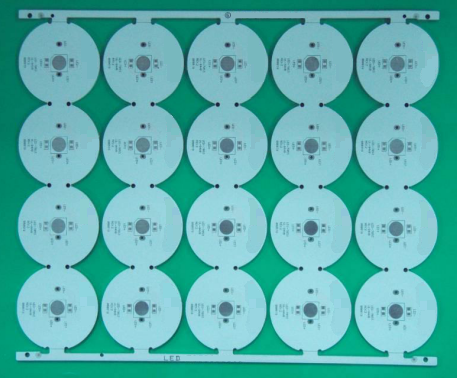

Aluminum PCBs are widely used in LED and other advanced technologies to aid in heat dissipation and allow specific illumination. In each, a thin layer of thermally conductive but electrically insulating dielectric material is laminated between a metal base and a copper foil. This is then etched into the preferred circuit pattern while the metal base draws heat away from the circuit through the thin dielectric layer.

Capabilities


    Aluminum Type
    5052, 6061, 1100, 1050
    Max. Thickness: 4mm

    Min. Thickness: 0.15mm

    Copper Substrate

    Max. Thickness: 4mm

    Min. Thickness: 0.3mm

    Thermal Conductivity
    Coefficient of Thermal Conductivity
    1 - 3 w/mk

    4 w/mk

    5 w/mk

    8 w/mk

    CEM3

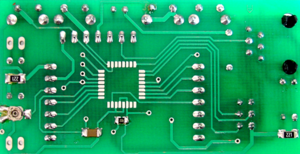

    FR4

    Board Dimensions
    Single Layer
    Max. Panel Size: 507 x 750mm

    Max. Array Size: 477 x 725mm

    Double Layer
    Max. Panel Size: 507 x 610mm

    Max. Array Size: 477 x 580mm

    Inner Layer
    Trace Width / Space
    Min. 3/3mil

    Copper Weight
    Max. 3oz

    Min. 0.5oz

    Core Thickness
    Max. 2mm

    Min. 3mil

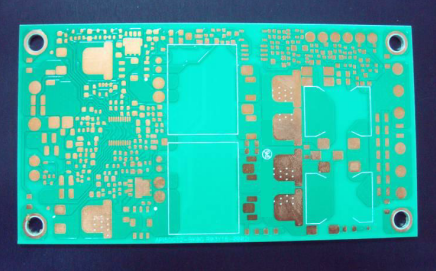

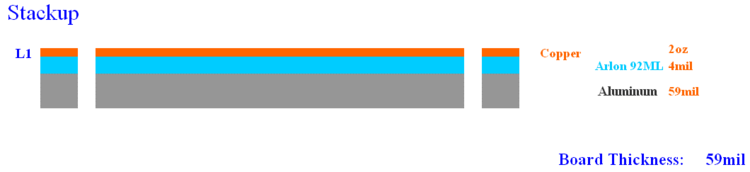

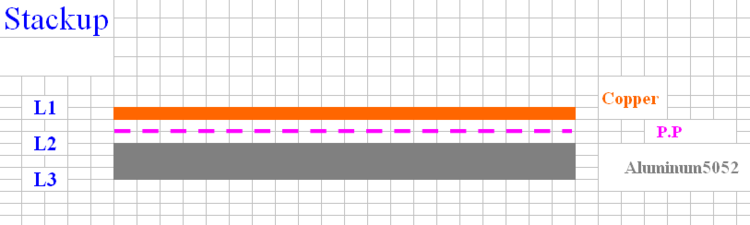

    Lamination
    Double-Sided Multilayer
    Max. 1+1 Layers (with T.H.)

    Max. 6+6 Layers (without T.H.)

    One-Sided
    Max. 6 Layers

    Drilling and Plating
    Plated Hole Size
    Min. 8mil

    Mounting Hole Size
    Min. 16mil

    Hole to Hole Pitch
    Min. 24mil

    Outer Layer
    Trace Width / Space
    3/3mil

    Finished Trace Copper Thickness
    Max. 8mil

    Finished Trace Copper Thickness
    Min. 0.5mil

    Available Surface Finish
    SMT Process
    ENIG

    ENEPIG

    H.A.S.L. (Lead Free)

    Immersion Nickel

    Immersion Silver

    Immersion Tin

    OSP

    Silver Electric Plating

    COB Process
    Electric Silver Plating

    ENEPIG

    ENIG

    Other
    Anodic Treatment

    Blind Drilling

    Concave Cup

    Countersink Hole

    High Reflective Aluminum

    Screw Hole Tapping
